Sale!
3 in 1 Network DMM
ProsKit
$75.00 $60.00
In stock
Description
3 In 1 Network Digital Multimeter

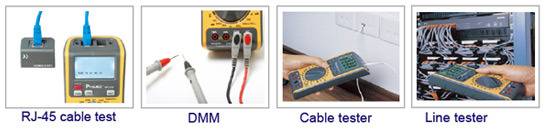

3 in 1 for RJ-11 line test, RJ-45 cable test and DMM functions
CATII 1000V/ CATIII 600V
Test for open circuits , shorts, miswires, reversals and split pairs
3-1/2 digits 1999 counts
0.8% best accuracy
Auto / Manual rang
Auto power off, back light, data hold and low battery indication
Battery: 6F22 (9V) (Not included)
Size: 185x85x44mm
|
Counter
|
1999
|
|
Digits
|
3 1/2
|
|
Backlight
|
Y
|
|
Auto/Manual ranging
|
Auto/Manual
|
|
DC (V)
|
200m/2/20/200V ±(0.8%+2d)
|
|
1000V ±(1.2%+3d)
|
|
|
AC(V)
|
200mV ±(1.2%+3d)
|
|
2/20/200V ±(0.8%+3d)
|
|
|
700V ±(1.2%+5d)
|
|
|
DC(A)
|
200μ/2m/20mA ±(0.8%+3d)
|
|
200mA ±(1.5%+2d)
|
|
|
10A ±(2.0%+5d)
|
|
|
AC(A)
|
40m/400mA ±(1.5%+5d)
|
|
10A ±(3.0%+10d)
|
|
|
200mA ±(1.8%+3d)
|
|
|
10A ±(3.0%+5d)
|
|
|
Resistance(Ω)
|
200Ω ±(0.8%+3d)
|
|
2k/20k/200k/2MΩ ±(0.8%+2d)
|
|
|
20MΩ ±(1.0%+2d)
|
|
|
200MΩ ±(5.0%+10d)
|
|
|
Special Function
|
RJ-45/RJ-11 Cable test for open circuits, shorts, miss wires, reversals, and split pairs
|
|
Battery test 1.5/3/9V approx.
|
|
|
Continuity with beeper
|
Y
|
|
Diode test
|
Y
|
|
Display hold
|
Y （only for multimeter)
|
|
Automatic Power Off
|
Y
|
|
Low battery indication
|
Y
|
|
EN61010-1 CAT II /III
|
CATII 1000V/ CATIII 600V
|
|
Battery
|
6F22(9V) (not included)
|
|
Size (D×W×H)mm
|
185 x 85 x 44mm
|
|
Weight (g)
|
360g（including battery)
|
|
Individual Packing
|
Color Box
|
|
Test leads
|
Electric Ratings 1000V 10A
|
Additional information
| Weight | 1 kg |
|---|
